Spiral conveying solution

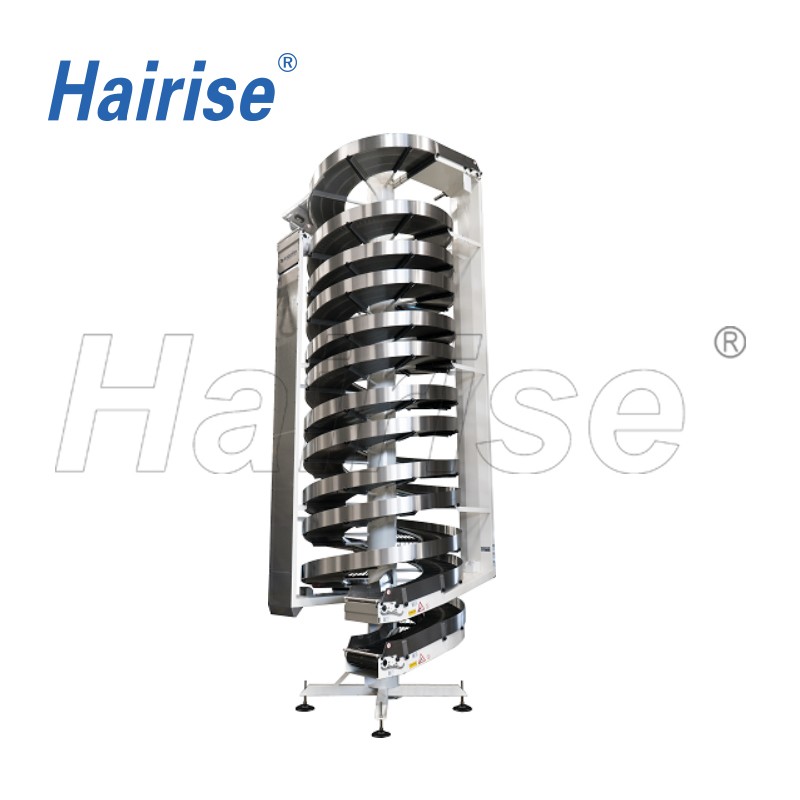

The Nested-configuration is a multi-track spiral that offers the most compact and flexible spiral

conveying solution. The Nested-configuration can be applied for both elevation and accumulation purposes.

The spiral is based on the idea that you can wind more than one track around the same vertical axle.

These tracks can have the same belt width.

With the Nested-configuration , two or more tracks run above each other instead of side by side.

This makes it especially well-suited for products with a low height. Each track functions entirely separate,

each with their own gear motor, maintenance access, and end rollers.

In/outfeed configurations: The Nested-configuration comes in a limited number of in/outfeed

configurations. Custom

configurations can be made on request. Product height: The clear product height is limited

because of the nested configuration. To calculate the approximate clear product height,

take the standard clear product height of a non-nested spiral configuration,  minus 140 mm

and divide it by two.

Suitable for goods:

low-height products

Details

• Two product flows on the floor space of one

• Designed for low-height products

• For elevation or buffering

• Available for the following platforms and belt widths:100, 140, 200 mm/300, 400, 500, 600 mm/600 - 1200 mm
